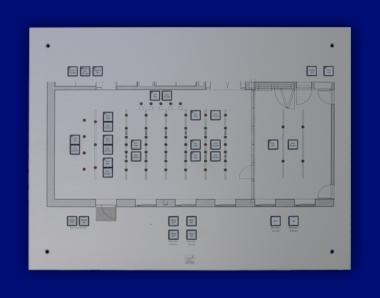

EIB-Lageplantableau
Anwendung:
Zentrale Lichtsteuerung
eines Pfarrheimes

Frontplatte:
Alu 3mm natur eloxiert,
Abmessungen: 515x395 (BxH)

Grafik:
Photo-Untereloxaltechnik, 1-farbig,
abriebfest, beständig gegen
Lösungs- und Reinigungsmittel

Gehäuse:
Montage in bauseitiges Gehäuse
Montageplatte aus verzinktem
Stahlblech, Befestigung der Front
durch Senkkopfschrauben
Zugentlastung durch Abhänge-
scharniere

Bestückung:
Kurzhubtaster 16x16mm 1pol.
100mA, mit integrierter LED 3mm
LED 5mm frontbündig montiert,
Verdrahtung auf EIB-E/A-Konzentrator
